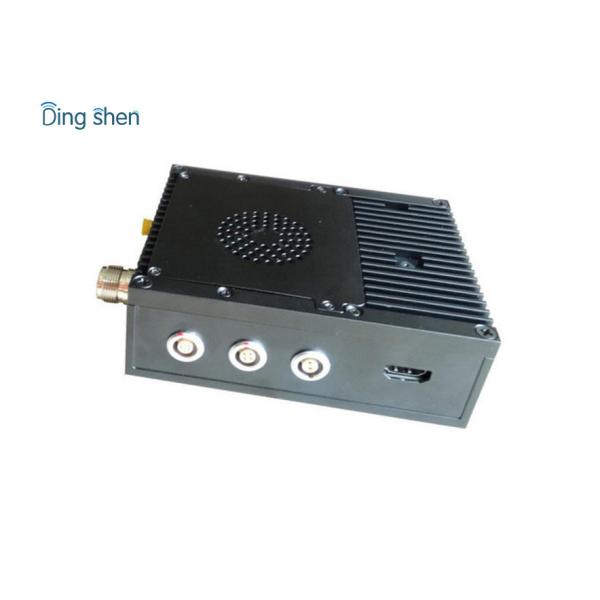

Introduction of electric defence security 10km wireless transmitter and receiver
DS-HDT5000 is a new powerful HD COFDM video audio transmitter, which can up to 15-25W rf power.DS-HDT5000 wireless video transmitter can transmit a super long range that up to 250km on UAV.
It adopts core technology 4th generation mobile communication COFDM modulation and low delay full-HD 1080P technique that can transmit high quality and stable image under the condition of fast moving or many buildings as obstacles(NLOS).
This wireless video transmitter is suitable for vehicles -- cars, boat -- boats, cars - -a building,
Ship--a base station, aircraft--a building/vehicle and etc. SG-HD25W transmits high-definition moving video signal even if in a fast moving condition, and the max moving speed can up to 450 km / h.
.
Features:
● COFDM modulation technology ensure the stability of signal
● Support FULL HD quality,1080i/P@30fps;
● Built-in with HD and BNC ports;
● Provide AES128 encryption for video safety.
● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;
● 2-5W rf power adjustable
● Low delay time
● With four holes at the bottom of the transmitter for fixed installation
● Widely used in helicopter shooting, Live broadcast and etc…
Specification:
| Frequency | 300-900Mhz (option), or other band customized |
| Modulation | COFDM |
| Consumption | <40W |
| Encryption | AES 128 bits |
| Constellation | QPSK(4QAM),16QAM,64QAM |
| FEC | 1/2 2/3 3/4 5/6 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Carrier | 2K,8K |
| Bandwidth | 2/3/4/6/7/8MHz (option) |
| Video rate | 200kps~20000kps (adjustable) |
| RF power | 37dbm (5W) |
| Video input | HDMI,CVBS,AHD,SDI (option) |
| Video coding | H.264 |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL |
| Transmission distance | 80-100km LOS from air to ground; 1-3km NLOS on ground station |
| Working voltage | DC12V |
| Working Temperature | -20℃ -- +55℃ |
| Dimension | 220*150*60mm |
| Weight | 1362g |
| Box colour | Black |
| Antenna port | N type |
Rack-mounted COFDM Wireless Receiver:
Specification:
| Power | Working voltage | DC12V~16.8V |
| Working current | ≤5A@DC14.8V (battery powered) |
| RF | Frequency | 300-900Mhz (option) |
| Bandwidth | 2/4/6/8MHz |
| Input level | -102dBm～-20dBm |
| Modulation | COFDM |
| Constellation | QPSK, 16 QAM, 64 QAM |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Carrier | 2K/8K |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Video output | HDMI | 1.4 version support 576i～1080P |
| Data control (option) | Data frequency | 430~440MHz (default: 433MHz) |
| Output power | 37dBm |
| Data Tx mode | DSSS |
| Second harmonic | <-60dB |
| Frequency space | 150KHz |
| Spurious emission | ＜60dB |
| Baud rate | 115200bps maximum |
| Working temperature | -20℃~55℃ |
Our Service:
1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
